Description

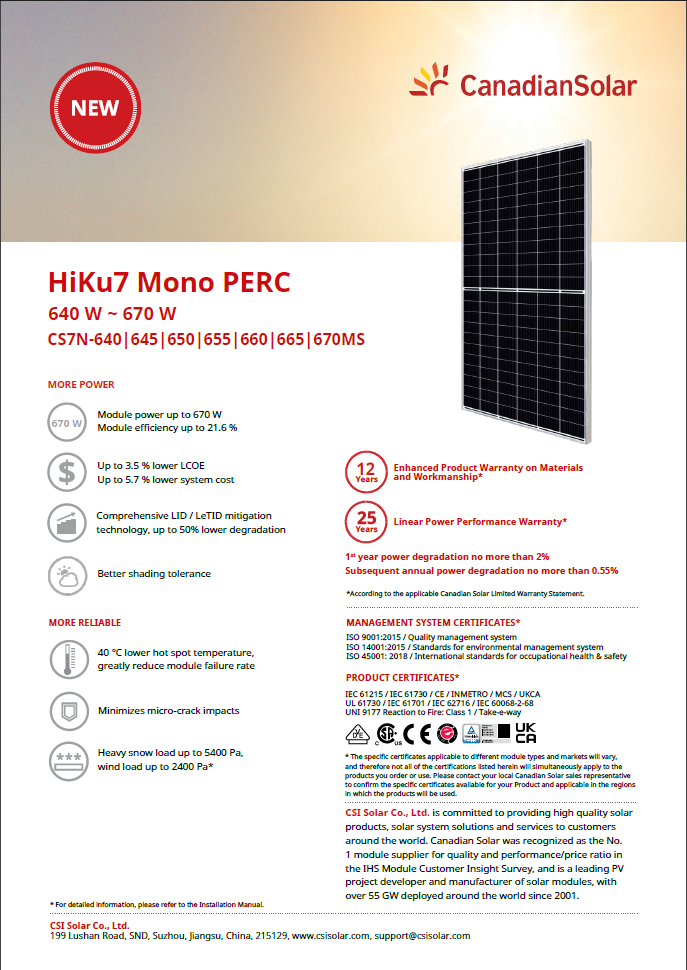

MORE POWER
- Module power up to 670 W
- Module efficiency up to 21.6 %
- Up to 3.5 % lower LCOE
- Up to 5.7 % lower system cost
- Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
- Better shading tolerance
MORE RELIABLE
- 40 °C lower hot spot temperature, greatly reduce module failure rate
- Minimizes micro-crack impacts
- Heavy snow load up to 5400 Pa, wind load up to 2400 Pa*

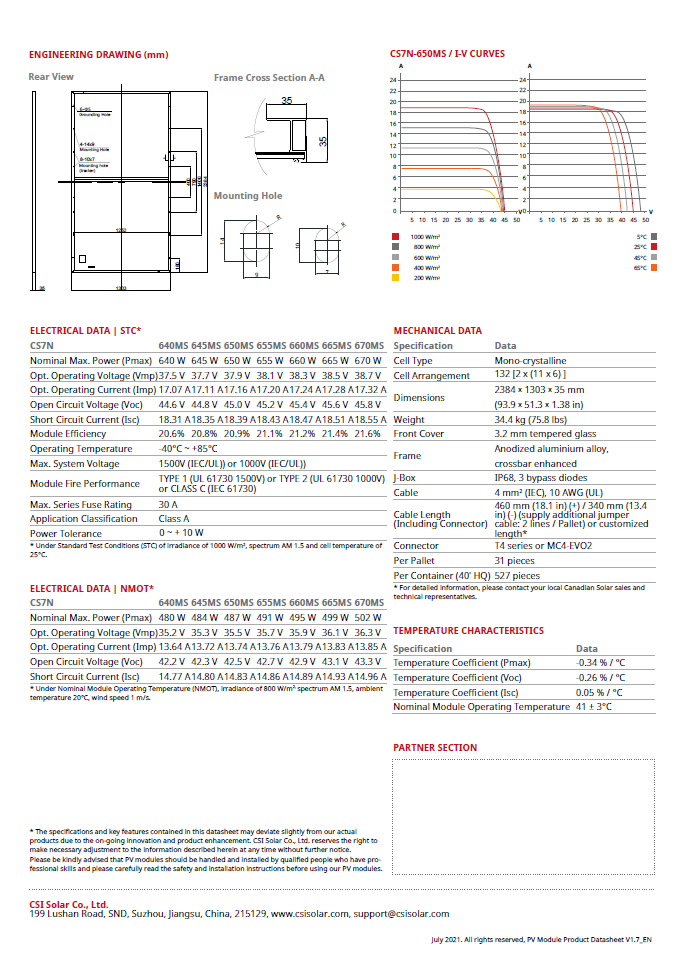

ELECTRICAL DATA | STC
- Nominal Max. Power (Pmax): 665 W
- Opt. Operating Voltage (Vmp): 38.5 V
- Opt. Operating Current (Imp): 17.28 A
- Open Circuit Voltage (Voc): 45.6 V
- Short Circuit Current (Isc): 18.51 A
- Module Efficiency: 21.4%
- Operating Temperature: -40°C ~ +85°C
- Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
- Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
- Max. Series Fuse Rating: 35 A
- Application Classification: Class A
- Power Tolerance: 0 ~ + 10 W
MECHANICAL DATA
- Cell Type: Mono-crystalline
- Cell Arrangement: 132 [2 x (11 x 6) ]
- Dimensions: 2384 ˣ 1303 ˣ 35 mm (93.9 ˣ 51.3 ˣ 1.38 in)
- Weight: 37.9 kg (83.6 lbs)
- Front Cover: 3.2 mm tempered glass
- Frame: Anodized aluminium alloy, crossbar enhanced
- J-Box: IP68, 3 bypass diodes
- Cable: 4 mm2 (IEC), 10 AWG (UL)
- Cable Length (Including Connector): 460 mm (18.1 in) (+) / 340 mm (13.4 in) (-) (supply additional jumper cable: 2 lines / Pallet) or customized length*
- Connector: T4 series or MC4-EVO2
- Per Pallet: 31 pieces
- Per Container (40′ HQ): 527 pieces
