Fronius Tauro 50-3-D Solar Inverter

SKU TAURO 50-3-D Categories , Tag

Share this Product!

Description

Fronius Tauro

Designed to performance.

The three-phase Fronius Tauro in the 50-kW power class promises maximum performance, even under the harshest conditions. With its smart hardware design, it not only contributes to BOS cost optimization, but also offers unprecedented flexibility in system design. The Fronius Tauro can be used to implement sophisticated roofs in both centralized (P variant) and decentralized system designs (D variant). Simplest installation and the fastest service on the market also guarantee maximum safety.

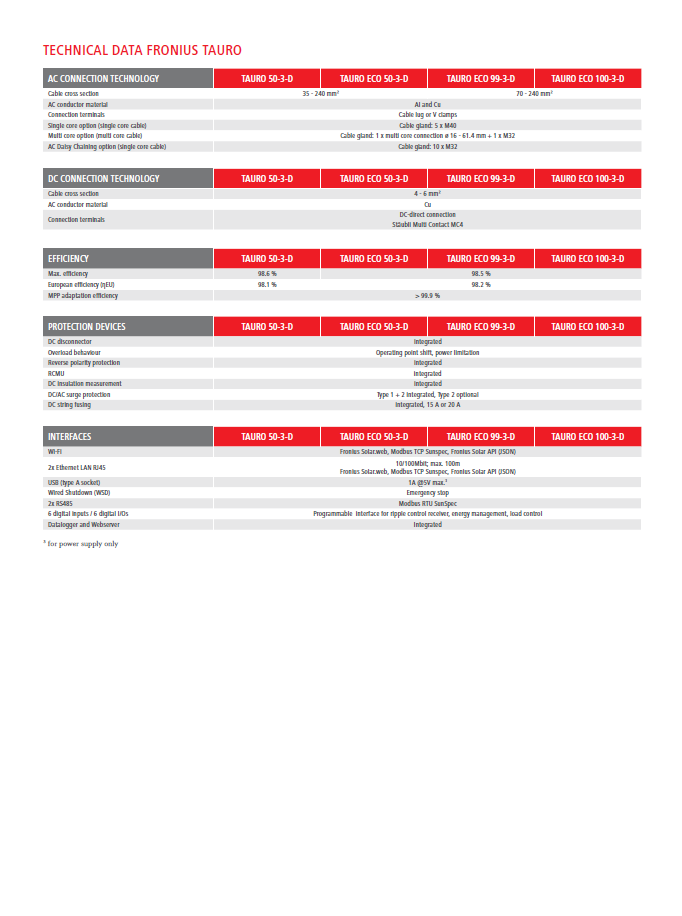

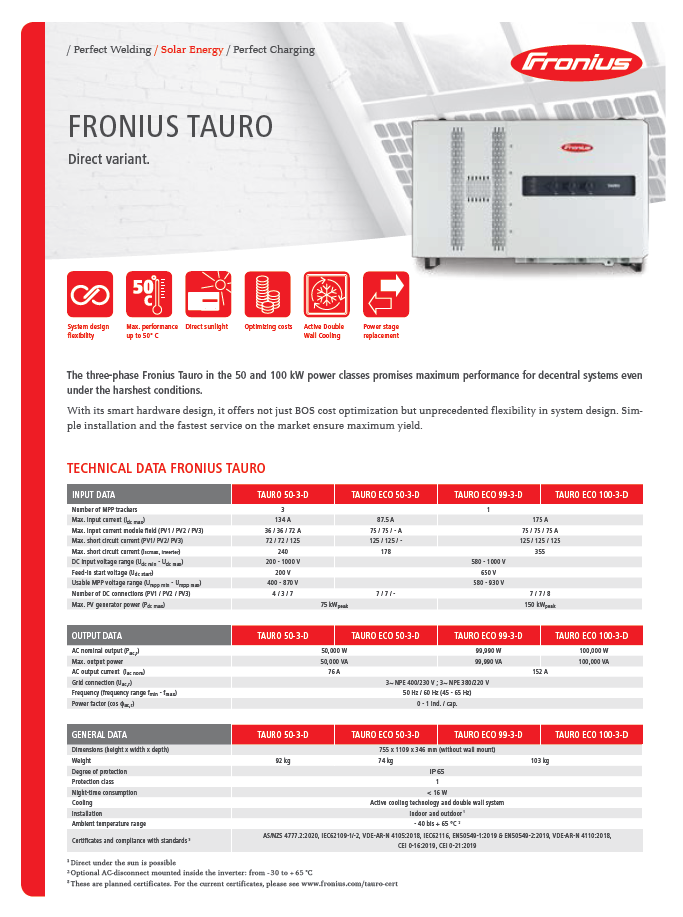

Technical Data

INPUT DATA

Number of MPP trackers 3
Max. input current (Idc max_inverter)
134 A
Feed-in start voltage (Udc start)
200 V
MPP voltage range (Umpp min – Umpp max)
400 – 870 V 9)
Max. PV generator power (Pdc max)
75 kWpeak
Max. input current PV1 (Idc max, PV1)
36 A
Max. input current PV2 (Idc max, PV2)
36 A
Max. input current PV3 (Idc max, PV3)
72 A
Max. short-circuit current PV1 (Isc max, PV1)*
72 A
Max. short-circuit current PV2 (Isc max, PV2)*
72 A
Max. short-circuit current PV3 (Isc max, PV3)*
125 A
Max. power PV system PV1 (Pdc max,PV1)
25 kWpeak
Max. power PV system PV2 (Pdc max, PV2)
25 kWpeak
Max. power PV system PV3 (Pdc max, PV3)
50 kWpeak
Max. AC fuse size rating 355 A
Max. short-circuit current inverter (Isc max, inverter)
240 A
Max. short-circuit current string (Isc max, string)
20 A
Max. input current string (Idc max, String)
14,5 A
Number of DC connections PV1
4
Number of DC connections PV2
3
Number of DC connections PV3
7
Max. short-circuit current string (Isc max, string– 30 A Option
30 A
Max. input current string (Idc max, String) – 30 A Option
22 A
Number of DC connections PV1 – 30 A Option
4
Number of DC connections PV2 – 30 A Option
5
Number of DC connections PV3 – 30 A Option
5

OUTPUT DATA

AC nominal output (Pac,r)
50 kW
Max. output power (Pac max)
50 kVA
AC output current (Iac nom)
75,8A at 220Vac , 72,5A at 230Vac
Grid connection (Uac,r)
3~ NPE 380/220 , 3~ NPE 400/230 V
AC voltage range (Umin – Umax)
180 – 270 V
Frequency (fr)
50/60 Hz
Frequency range (fmin – fmax)
45 – 65 Hz
Total harmonic distortion <3% @Pnom (230/400VAC 50Hz)
Power factor (cos φac,r)
1 ind,/cap,
Max. DC fuse size rating 20 A
