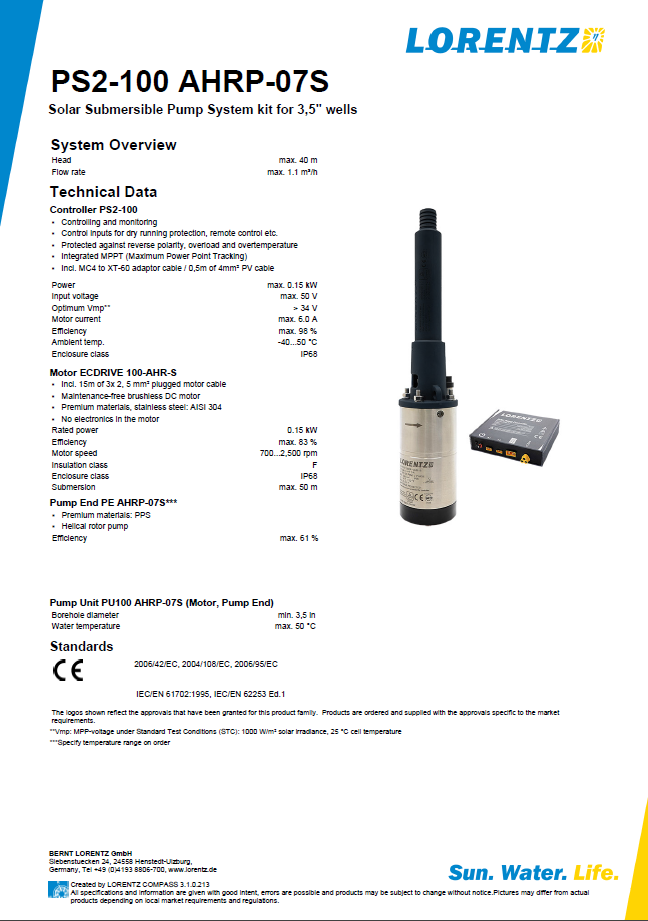

LORENTZ PS2-100 AHRP-07S Solar Submersible Pump System kit for 3,5

SKU PS2-100 AHRP-07S Categories , Tag

Technical Data

Controller PS2-100

  • Controlling and monitoring
  • Control inputs for dry running protection, remote control etc.
  • Protected against reverse polarity, overload and overtemperature
  • Integrated MPPT (Maximum Power Point Tracking)
  • Incl. MC4 to XT-60 adaptor cable / 0,5m of 4mm² PV cable

Power max. 0.15 kW
Input voltage max. 50 V
Optimum Vmp** > 34 V
Motor current max. 6.0 A
Efficiency max. 98 %
Ambient temp. -40…50 °C
Enclosure class IP68

Motor ECDRIVE 100-AHR-S

  • Incl. 15m of 3x 2, 5 mm² plugged motor cable
  • Maintenance-free brushless DC motor
  • Premium materials, stainless steel: AISI 304
  • No electronics in the motor

Rated power 0.15 kW
Efficiency max. 83 %
Motor speed 700…2,500 rpm
Insulation class F
Enclosure class IP68
Submersion max. 50 m

Pump End PE AHRP-07S

  • Premium materials: PPS
  • Helical rotor pump

Efficiency max. 61 %

Pump Unit PU100 AHRP-07S (Motor, Pump End)

Borehole diameter min. 3,5 in
Water temperature max. 50 °C

Share this Product!

Description

System Overview

Head max. 40 m
Flow rate max. 1.1 m³/h
