LORENTZ smartTAP Water Dispenser Solution

SKU 01-22-A Categories , Tag

FEATURES:

  • Secure NFC tag-based water dispenser
  • Intuitive user interface, high user acceptance, accessible for all irrespective of age, gender or capabilities
  • Robust and secure housing
  • 10 Wp solar module for charging
  • Integrated battery charging for 24-hour use

TECHNICAL DATA:

  • DC Input Umax 24 V DC
  • Max. pressure 3 bar
  • Min. pressure 0.1 bar
  • Flow at 0.2 bar 19 l/min
  • Flow at 3 bar 54 l/min
  • Accuracy > 95 %
  • Battery NP7-12 lead acid
  • Bluetooth FCCID: QQQBT127

** Optional integrated GSM modem:
2G / 3G communication
R&TTE, GCF, CE, FCC, PTCRB,
IC, UL and AT&T approvals
External antenna

ENVIRONMENTAL DATA:
For drinking water – max 40 oC
Enclosure IP66
Operating temp (ambient) 0 to 45 oC
non-freezing
Humidity max. 95 %

PRODUCT DIMENSION/WEIGHT:

  • Height 400 mm / 15.75 ”
  • Length 300 mm / 11.81 ”
  • Width 187 mm / 7.36 ”
  • Weight (dispenser) 4.8 kg
  • Weight (PV module and cable) 1.36 kg

Share this Product!

Description

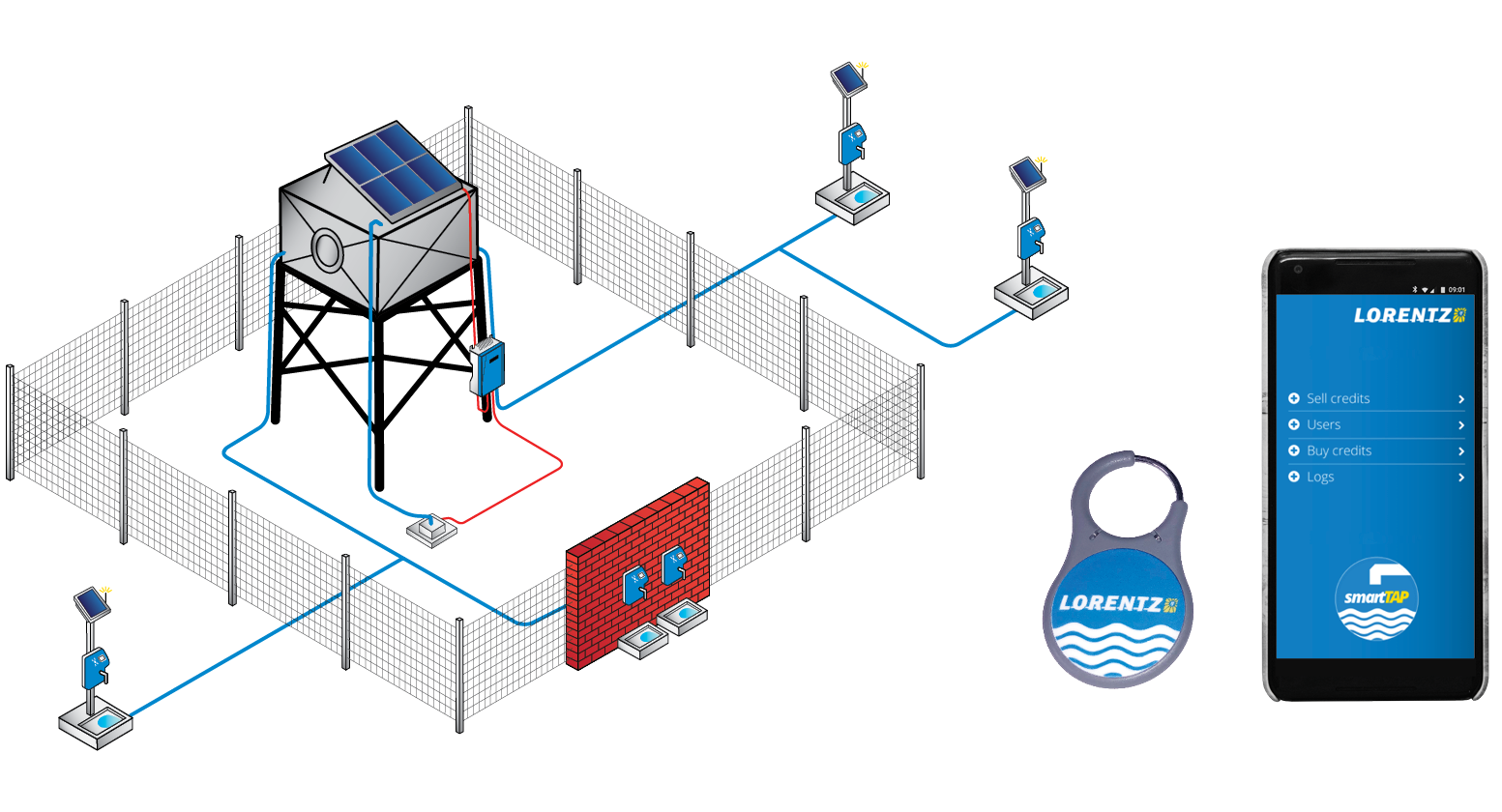

LORENTZ smartTAP is an off-grid water dispensing and management system which enables revenue collection, water entitlement and sustainable water provision.

LORENTZ smartTAP combines hardware, software and predefined business models to allow for water infrastructure to be delivered in an economically sustainable way using the latest technology.
