Description

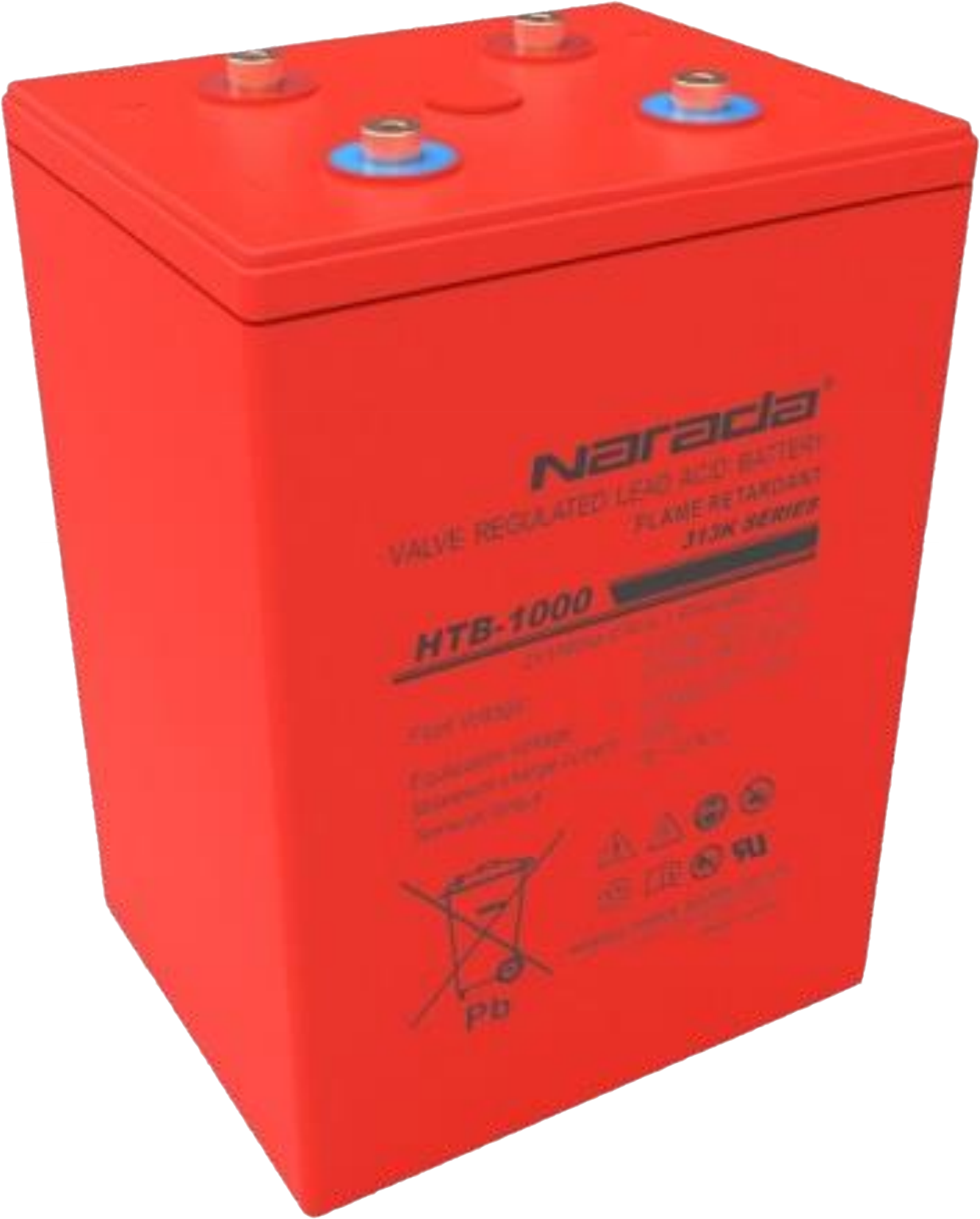

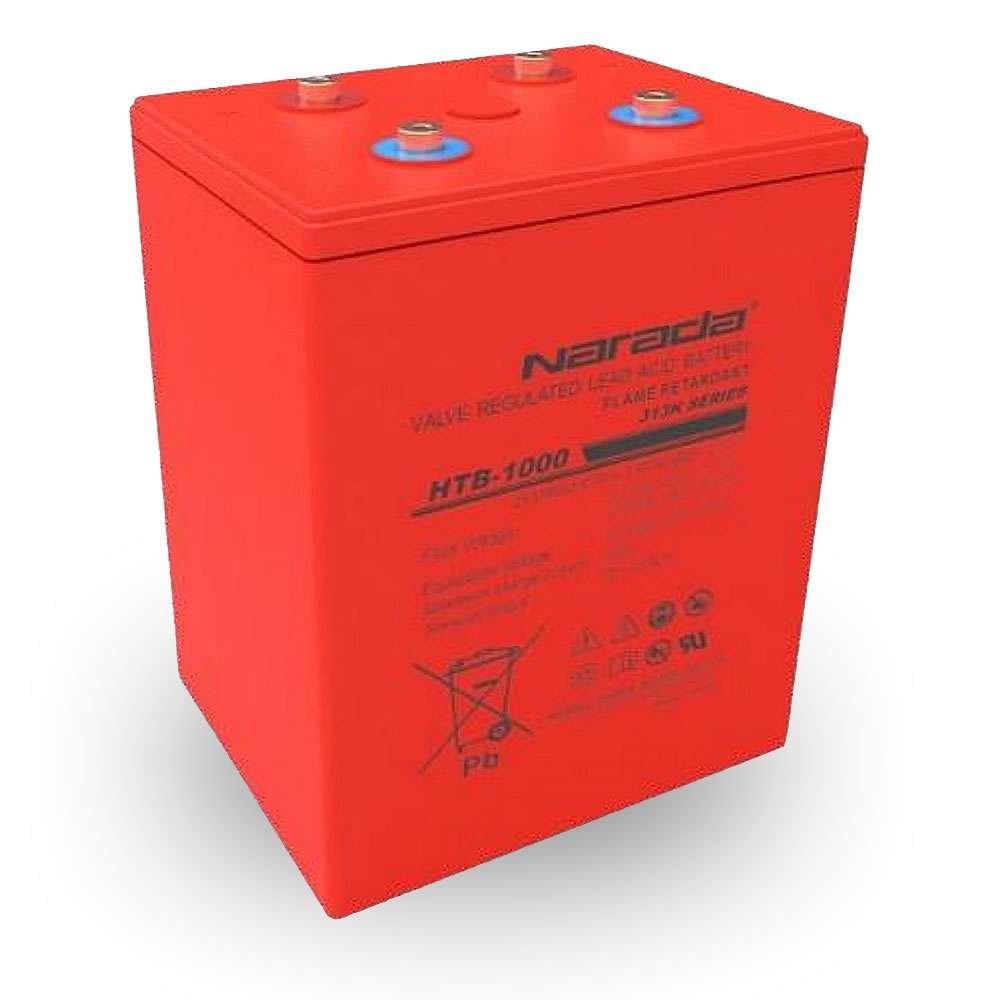

Designed and manufactured with 8 exclusive patented technologies, Narada has created an innovative range of high-temperature batteries. The 313K series is designed to cope with the most extreme temperatures and environments. The advanced technology and unique manufacturing methods enable 313K batteries to deliver at least twice the cycle life of conventional lead-acid batteries, making them the first choice for increasing power demands in remote hybrid telecom sites and other tough off-grid applications.

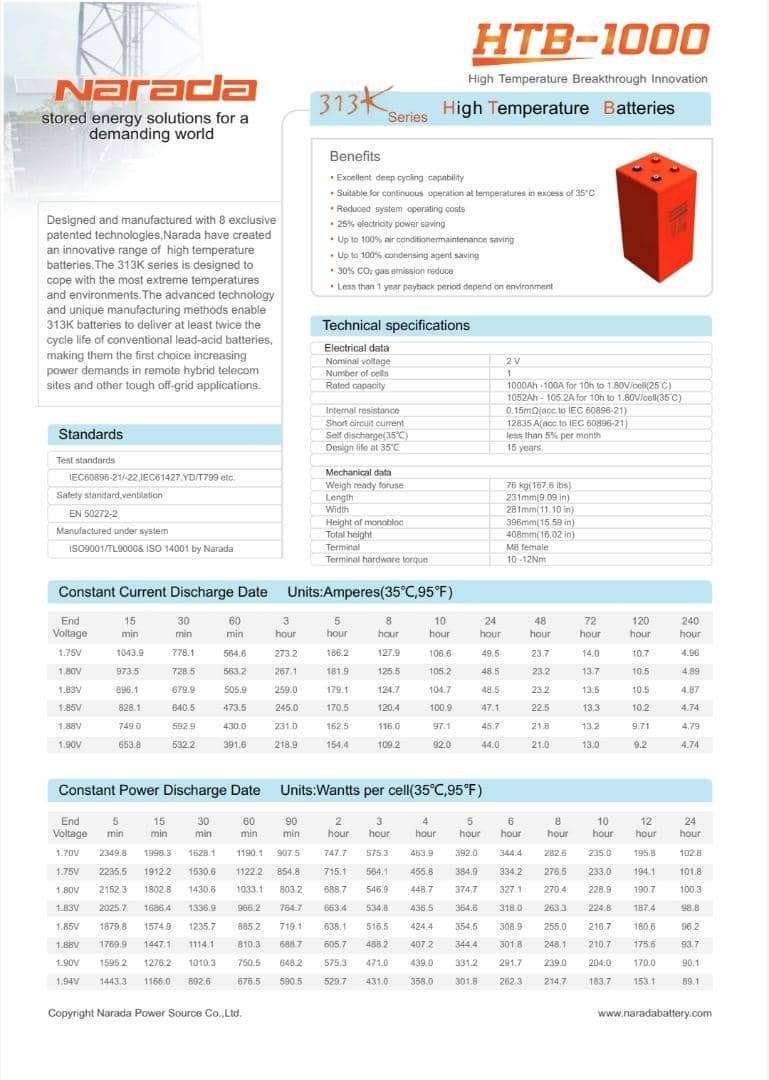

Specifications
Electrical data
| Nominal Voltage (V) | 2 |
| Rated Capacity (AH) | 1000Ah -100A for 10h to 1.80V/cell(25℃)
1052Ah – 105.2A for 10h to 1.80V/cell(35℃) |
| Internal resistance | 0.15m (acc. to IEC 60896-21) |
| Short circuit current | 12835 A(acc.to IEC 60896-21) |
| Self discharge(35℃) | less than 5% per month |
| Design life at 35℃ | 15 years |

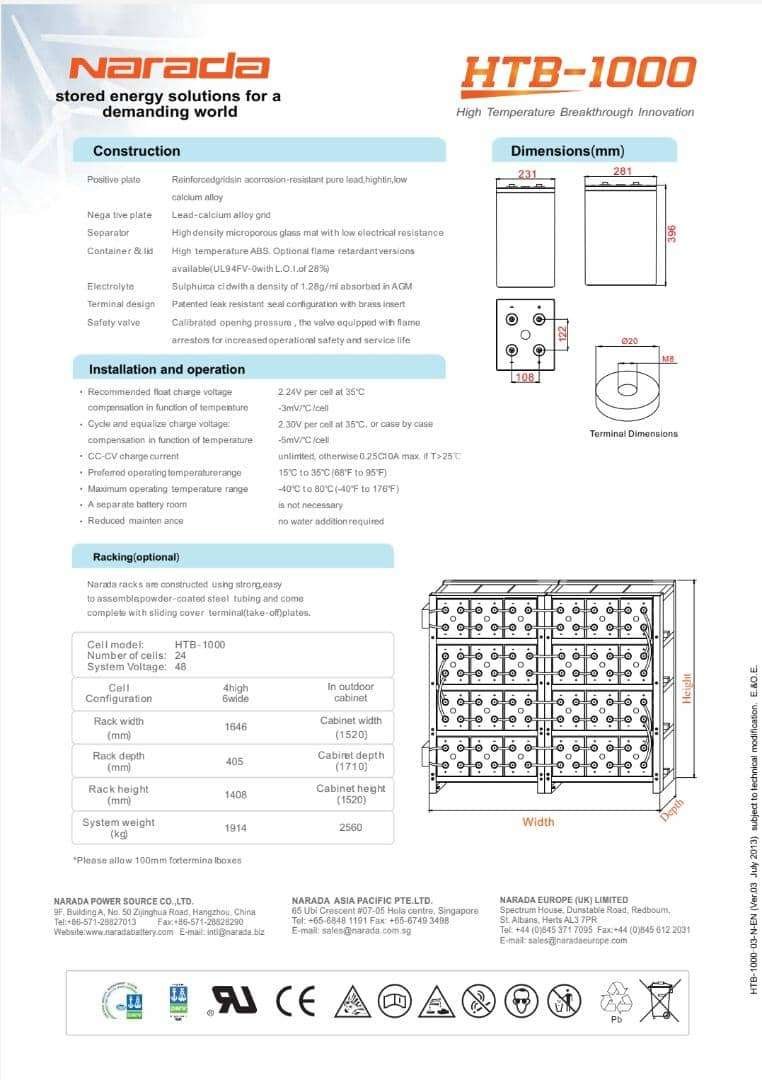

Mechanical data
| Weigh ready for use | 76 kg (167.6 lbs) |
| Length | 231mm (9.09 in) |
| Width | 281mm(11.10 in) |
| Height of monobloc | 396mm(15.59 in) |
| Total height | 408mm(16.02 in) |
| Terminal | M8 female |
