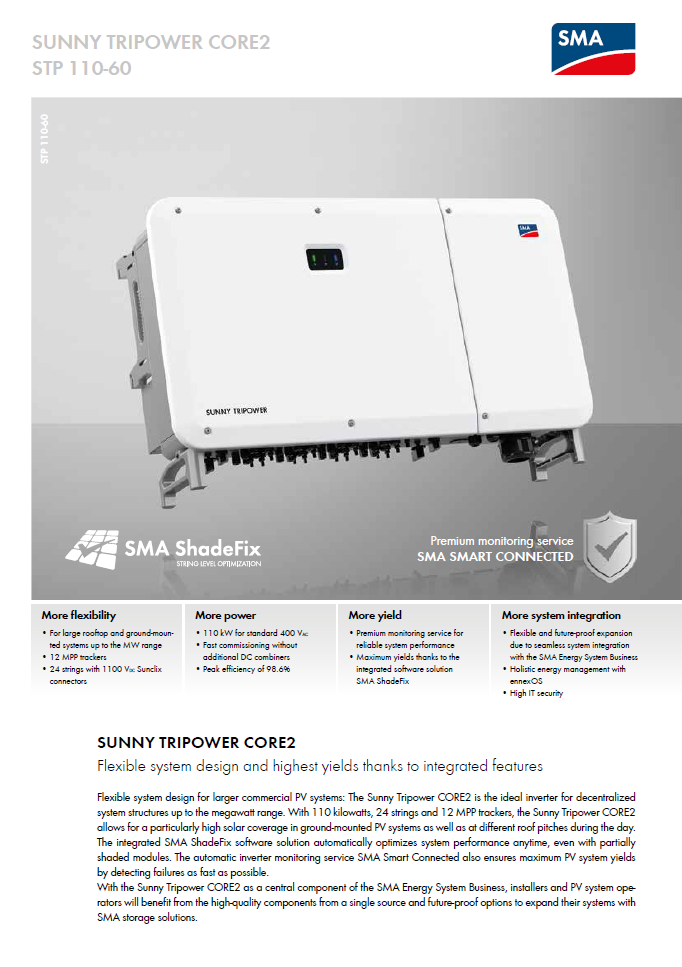

SMA Sunny Tripower CORE2 – STP 110-60 Solar Inverter

SKU STP 110-60 Categories , Tag

Flexible system design and highest yields thanks to integrated features

Flexible system design for larger commercial PV systems: The Sunny Tripower CORE2 is the ideal inverter for decentralized system structures up to the megawatt range. With 110 kilowatts, 24 strings and 12 MPP trackers, the Sunny Tripower CORE2 allows for a particularly high solar coverage in ground-mounted PV systems as well as at different roof pitches during the day. The integrated SMA ShadeFix software solution automatically optimizes system performance anytime, even with partially sha-ded modules. The automatic monitoring service SMA Smart Connected also ensures maximum PV system yields by detecting failures as fast as possible.

With the SMA Sunny Tripower CORE2 as a central component of the SMA Energy System Business, installers and PV system ope-rators will benefit from the high-quality components from a single source and future-proof options to expand their systems by SMA storage solutions.

Share this Product!

Description

More flexibility

For large rooftop and ground-mounted systems up to the MW range
12 MPP trackers
24 strings with 1100 VDC Sunclix connector

More power

110 kW for standard 400 VAC
Fast commissioning without additional DC combiners
Peak efficiency of 98.6%

More yield

Premium monitoring service for reliable system performance
Maximum yields thanks to the integrated software solution SMA ShadeFix

More system integration

Flexible and future-proof expansion in the SMA Energy System Business
Holistic energy management with ennexOS
High IT security

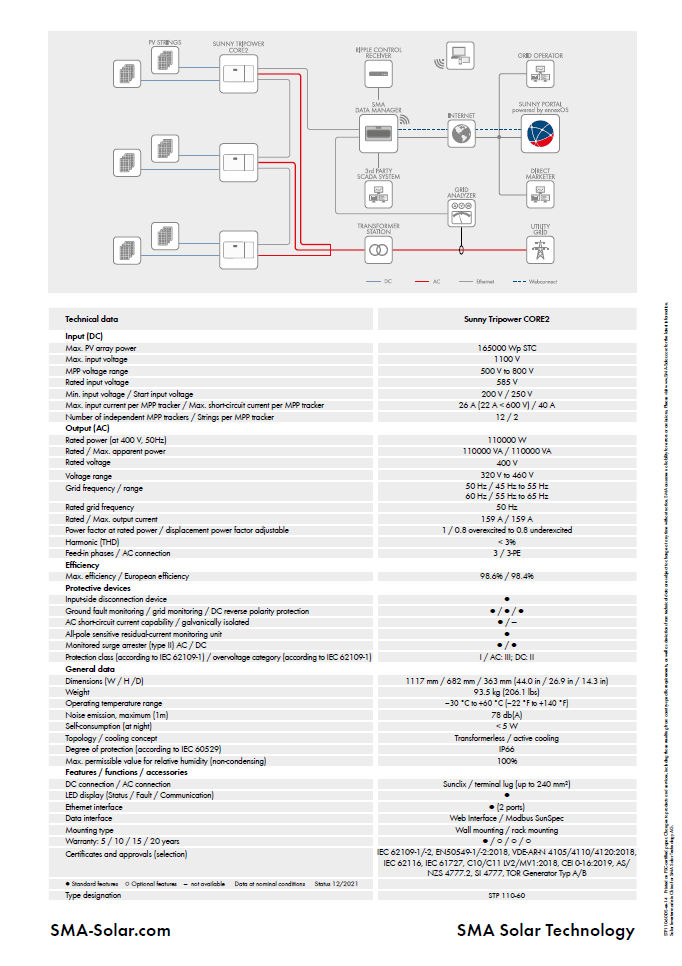

Technical information:

  • Max. PV array power – 165000 Wp STC
  • Max. PV input voltage – 1100 V
  • MPP input voltage range – 500 V to 800 V
  • Max. input current per MPP tracker – 26 A
  • Rated AC power at nominal voltage – 110000 W
  • Max. AC output current – 159 A
  • Feed-in phases / AC connection – 3 / 3-PE
  • Nominal AC voltage – 400 V
  • AC voltage range – 320 – 460 V
  • Degree of protection – IP 66
  • Topology / cooling concept – Transformerless / active cooling
  • Dimensions (W x H x D) – 1117 x 682 x 363 mm
  • Weigh – 93,5 kg
  • Mounting type – Wall mounting / rack mounting
  • Manufacturer Warranty – 5 years.
