INNOVATIVE COMPLETE SYSTEM

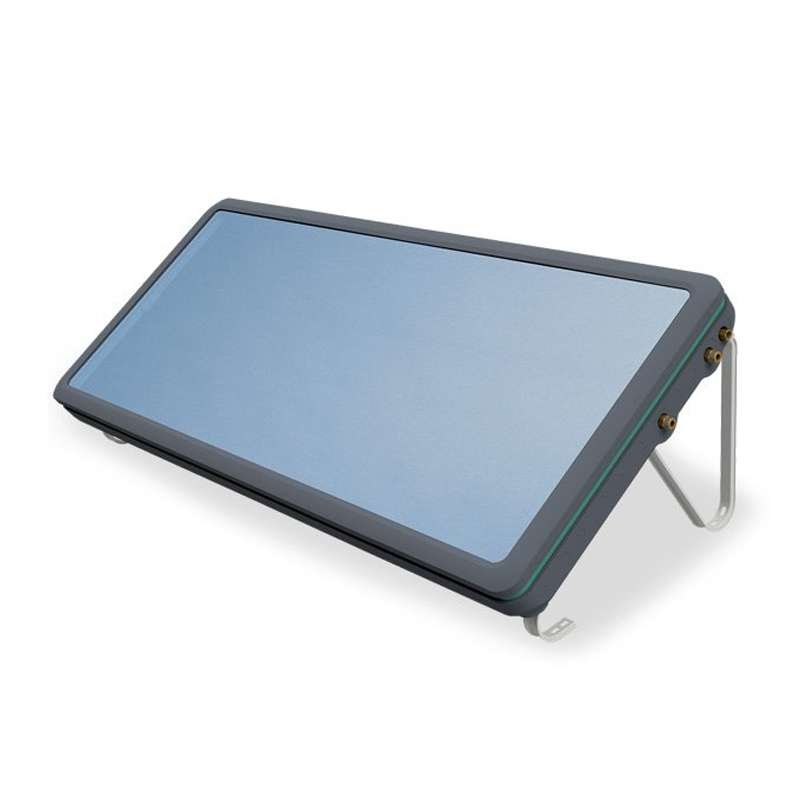

SUNPAD all-in-one-compact solar water system delivers fresh water with high performance. The innovative concept convinces with a unique design for aesthetic roof integration.
COST AND ENERGY-EFFICIENT
SUNPAD stands for excellent performance at a low-cost price and a short payback period. Furthermore, optimized packaging ensures reduced transport costs.
FLEXIBLE AND USER-FRIENDLY
Designed as a plug-and-play system SUNPAD is fast and easy to install. Its lightweight structure for easy handling is suitable for flat or pitched roof mounting.
|Gross area / net area||2.05 m2 / 1.68 m2|
|L x W x H||2.220 mm x 920 mm x 198 mm|
|Weight heater empty||62 kg (single AR glass)|
|Collector housing||EPP with UV protection cover|
|Bird protection||click-on aluminum frame|
|Absorber||Steel, selective coated|
|Connections||¾”, customized possible|
|SUNPAD E||1 kW heat rod|
|Thermal insulation||0.036 W/mK|
|Buffer tank capacity||150 liters of technical water|
|Domestic freshwater output||up to 380 liters hot water mixed with 40°|
|Volume heat exchanger||9. 2 liters|
|Material heat exchanger
|Stainless steel 1.4404 AISI 316L
Stainless steel 1.4539 AISI 904L
|Compressive strength heat exchanger||10 bar|
|Storage material||Steel ST235|
