Description

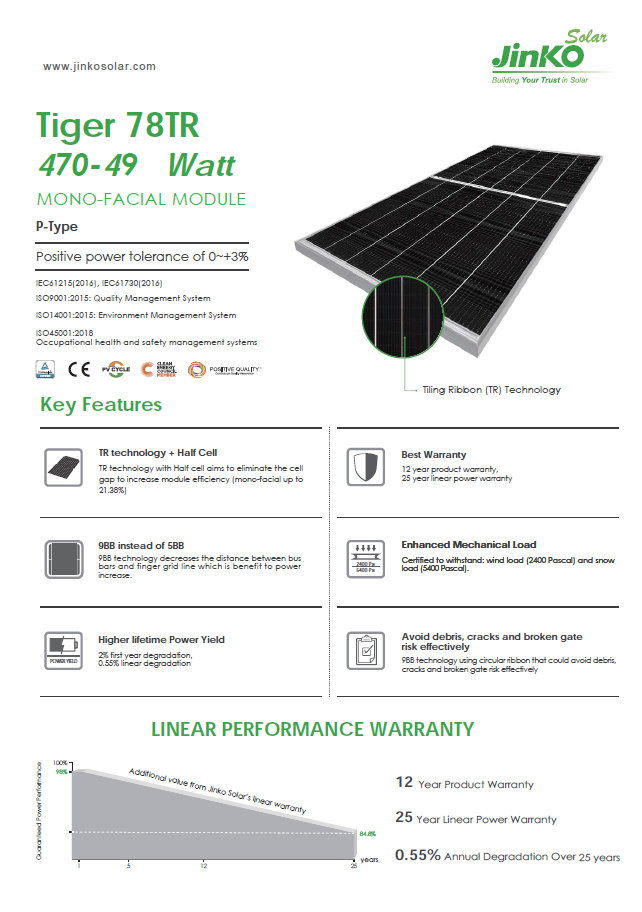

Key Features
- TR technology + Half Cell
TR technology with Half-cell aims to eliminate the cell gap to increase module efficiency (mono-facial up to 21.38%) - 9BB instead of 5BB
9BB technology decreases the distance between bus bars and finger grid line which is benefit to power increase. - Higher lifetime Power Yield
2% first year degradation, 0.55% linear degradation - Best Warranty
12-year product warranty, 25-year linear power warranty - Enhanced Mechanical Load
Certified to withstand wind load (2400 Pascal) and snow load (5400 Pascal). - Avoid debris, cracks and broken gate risk effectively
9BB technology using circular ribbon that could avoid debris, cracks and broken gate risk effectively

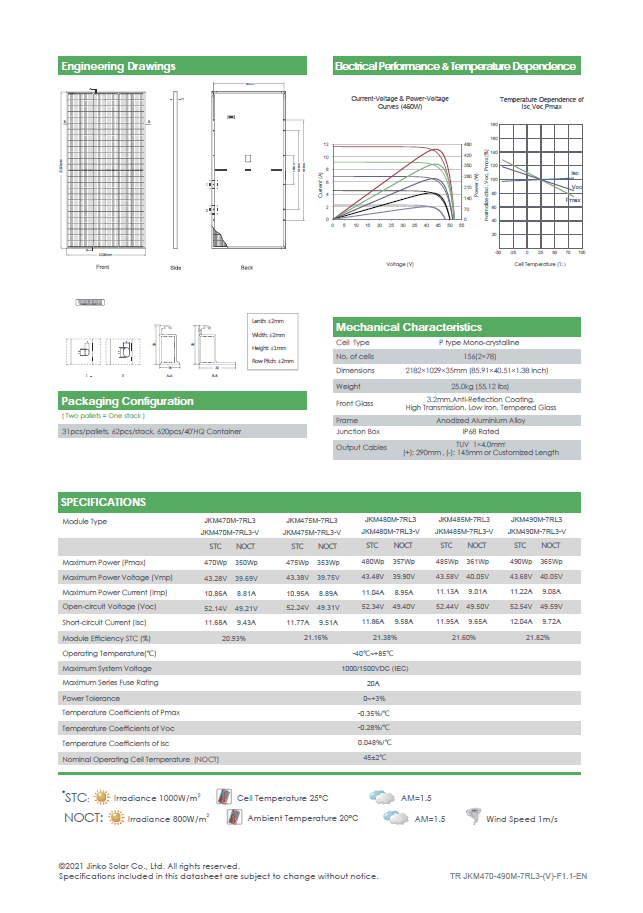

Specification | STC
- Module Type: JKM480M-7RL3-V
- Maximum Power (Pmax): 480Wp
- Maximum Power Voltage (Vmp): 43.48V
- Maximum Power Current (Imp): 11.04A
- Open-circuit Voltage (Voc): 52.34V
- Short-circuit Current (Isc): 11.86A
- Module Efficiency STC (%): 21.38%
- Operating Temperature (℃): -40℃~+85℃
- Maximum system voltage: 1000/1500VDC (IEC)
- Maximum series fuse rating: 20A
- Power tolerance: 0~+3%
- Temperature coefficients of Pmax: -0.35%/℃
- Temperature coefficients of Voc: -0.28%/℃
- Temperature coefficients of Isc: 0.048%/℃
- Nominal operating cell temperature (NOCT): 45±2℃
Mechanical Characteristics
- Cell Type: P type Mono-crystalline
- No. of cells: 156 (2×78)
- Dimensions: 2182×1029×35mm (85.91×40.51×1.38 inch)
- Weight: 25.0kg (55.12 lbs)
- Front Glass: 3.2mm, Anti-Reflection Coating,
High Transmission, Low Iron, Tempered Glass - Frame: Anodized Aluminum Alloy
- Junction Box: IP68 Rated
- Output Cables: TUV 1×4.0mm2 (+): 250mm, (-): 150mm or Customized Length
