Description

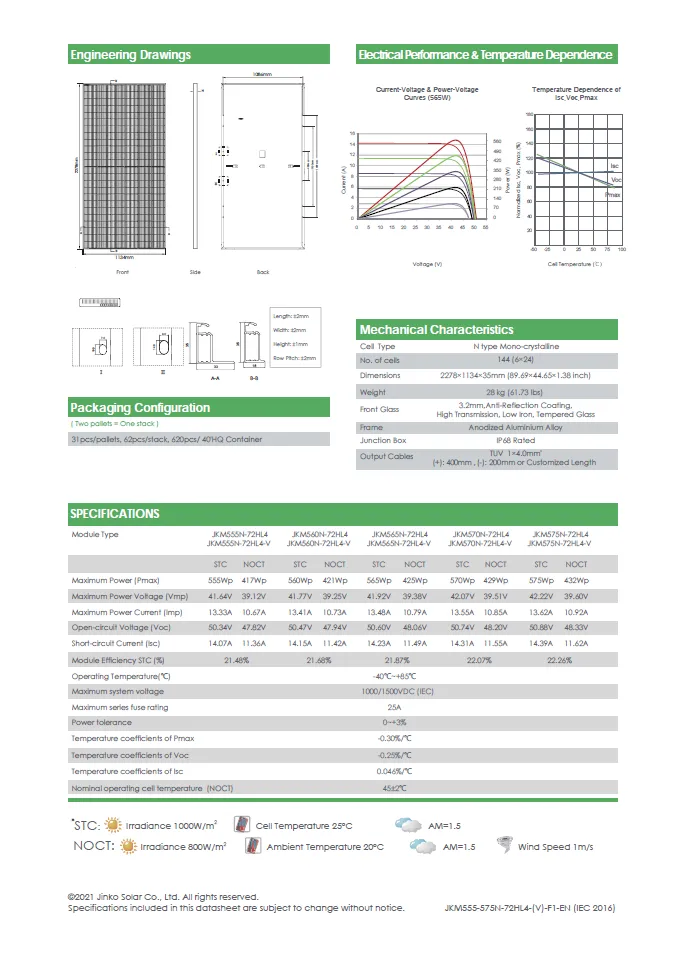

Specification | STC

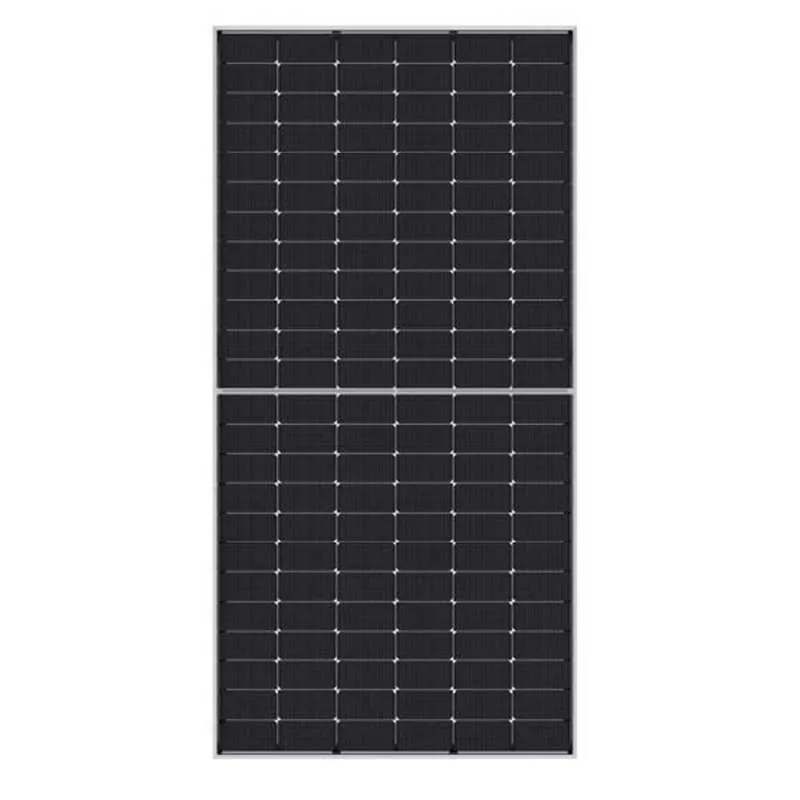

- Module Type: JKM550N-72HL4-V
- Maximum Power (Pmax): 550Wp
- Maximum Power Voltage (Vmp): 41.64V
- Maximum Power Current (Imp): 13.33A
- Open-circuit Voltage (Voc): 50.34V
- Short-circuit Current (Isc): 14.07A
- Module Efficiency STC (%): 21.48%
- Operating Temperature (℃): -40℃~+85℃
- Maximum system voltage: 1000/1500VDC (IEC)
- Maximum series fuse rating: 25A
- Power tolerance: 0~+3%
- Temperature coefficients of Pmax: -0.35%/℃
- Temperature coefficients of Voc: -0.28%/℃
- Temperature coefficients of Isc: 0.048%/℃
- Nominal operating cell temperature (NOCT): 45±2℃
Mechanical Characteristics
- Cell Type: N type Mono-crystalline
- No. of cells: 144 (6×24)
- Dimensions: 2278×1134×35mm (89.69×44.65×1.38 inch)
- Weight: 28.9 kg (61.73 lbs)
- Front Glass: 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass
- Frame: Anodized Aluminium Alloy
- Junction Box: IP68 Rated
- Output Cables: TUV 1×4.0mm2 (+): 400mm , (-): 200mm or Customized Length
