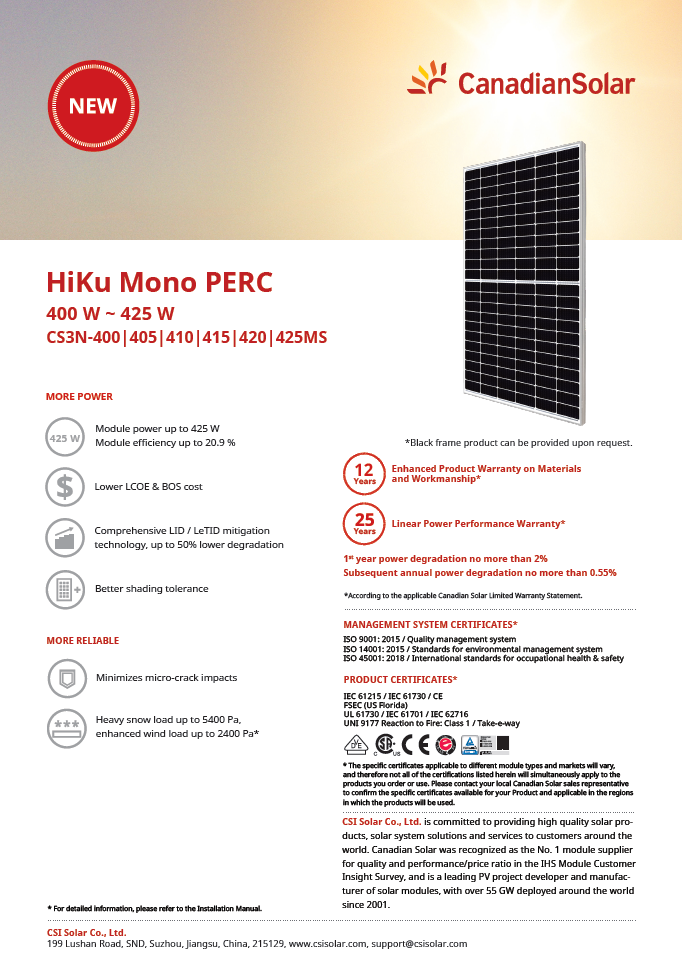

Canadian Solar 410 Watts HiKu Mono PERC Module

MORE POWER

  • Module power up to 425 W Module efficiency up to 20.9 %
  • Lower LCOE & BOS cost
  • Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
  • Better shading tolerance

Share this Product!

Description

MORE POWER

  • Module power up to 425 W Module efficiency up to 20.9 %
  • Lower LCOE & BOS cost
  • Comprehensive LID / LeTID mitigation technology, up to 50% lower degradation
  • Better shading tolerance

MORE RELIABLE

  • Minimizes micro-crack impacts
  • Heavy snow load up to 5400 Pa, enhanced wind load up to 2400 Pa
  • 12 years Enhanced Product Warranty on Materials and Workmanship
  • 25 years Linear Power Performance Warranty

ELECTRICAL DATA | STC

  • Nominal Max. Power (Pmax): 410 W
  • Opt. Operating Voltage (Vmp): 31.2 V
  • Opt. Operating Current (Imp): 13.15 A
  • Open Circuit Voltage (Voc): 37.2 V
  • Short Circuit Current (Isc): 14.09 A
  • Module Efficiency: 21%
  • Operating Temperature: -40°C ~ +85°C
  • Max. System Voltage: 1500V (IEC/UL) or 1000V (IEC/UL)
  • Module Fire Performance: TYPE 1 (UL 61730 1500V) or TYPE 2 (UL 61730 1000V) or CLASS C (IEC 61730)
  • Max. Series Fuse Rating: 25 A
  • Application Classification: Class A
  • Power Tolerance: 0 ~ + 10 W

MECHANICAL DATA

  • Cell Type: Mono-crystalline
  • Cell Arrangement: 132 [2 X (11 X 6) ]
  • Dimensions: 1940 X 1048 X 35 mm (76.4 X 41.3 X 1.38 in)
  • Weight: 22.5 kg (49.6 lbs)
  • Front Cover: 3.2 mm tempered glass
  • Frame: Anodized aluminium alloy
  • J-Box: IP68, 3 bypass diodes
  • Cable: 4 mm2 (IEC), 12 AWG (UL)
  • Cable Length (Including Connector): Portrait: 400 mm (15.7 in) (+) / 280 mm (11.0 in) (-); landscape: 1250 mm (49.2 in)
  • Connector: T4 series or MC4-EVO2
