Description

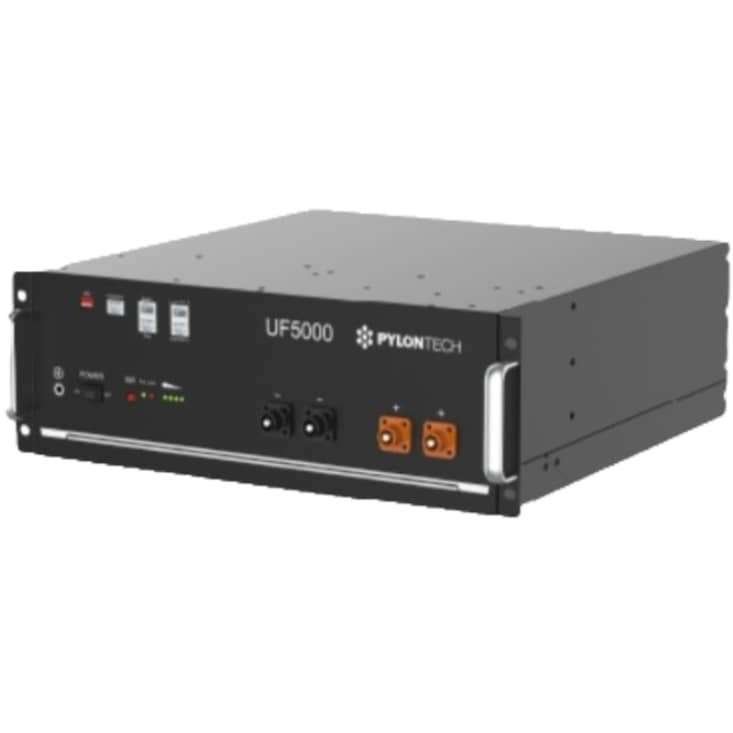

UF5000 is the latest Pylontech 48V LFP battery with bigger capacity at 5.12kWh modular and stronger functions for high current strike endurance, dual active protection, remote upgrade feature, widely internal compatibility up to 20 modules per single string.
Advantage
- Flexible for Mixed Usage
- Free to Scale Up
- 19 inches Rack Compatible
- High Power Efficiency
Technical Specifications
- Nominal Voltage (VDC): 51.2
- Nominal Capacity (kWh): 5.12
- Usable Capacity (kWh): 4.864
- Dimension (W*D*H mm): 442*420*161
- Weight (kg): 42
- Depth of Discharge: 95%
- Charge/Discharge (A) (Normal): 100
- Charge/Discharge (A) (Max): 100
- Charge/Discharge (A) (Peak): 121-200 @15s
- Communication Port: RS485/CAN
- Single String Quantity (pcs): 20
- Working Temperature/ (℃) Charge: -10~55
- Working Temperature/ (℃) Discharge: -10~55
- Storage Temperature/ (℃): -20~60
- Short current/duration time (A): <2000/1ms
- IP rating: IP20
- Humidity (RH): 5%-95% No Condensation
- Altitude (m): <4000
- Design life (@25℃): 15 years
- Cycle Life (@25℃): >6000
- Certification: IEC62619/UN38.3/RoHS/Reach/WEEE/MSDS
