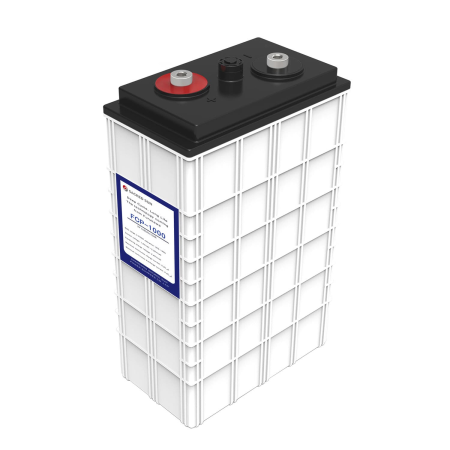

Sacred Sun FCP-1000 Lead-Carbon AGM Battery

SKU FCP-1000 Categories , Tag

Share this Product!

Description

The FCP-1000 Lead-Carbon battery module from Sacred Sun featuring the most advanced lead-acid technology from the Japanese Furukawa battery company. This high performance maintenance-free AGM deep cycle VRLA battery rivals lithium (LFP), but at a significantly lower price. Available in pre-built battery blocks of 12V, 24V, or 48V, including rack and connecting busbars.

Ideal for energy storage systems including back-up and solar.

Super long cycle life: > 4200 cycles @ 70% DOD
Design life is 15 years.

Lead carbon technology improves the charge acceptance of the battery and provides exceptional partial state-of-charge performance. An extremely beneficial feature for solar and alternative energy systems.

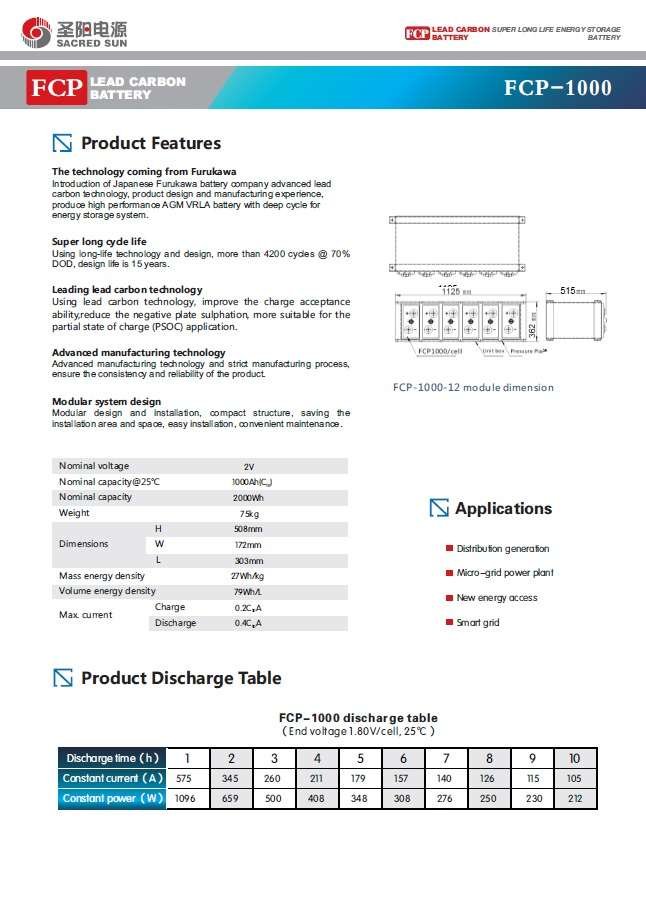

Specifications
  • Nominal voltage: 2V
  • Nominal capacity@25C: 1000Ah (C/10)
  • Nominal capacity: 2000Wh
  • Weight: 75kg
  • Dimensions (HxWxL): 508x172x303mm
  • Mass energy density: 27Wh/kg
  • Volume energy density: 79Wh/L
  • Max current
  • Charge: 0.2C/10 = 200A
  • Discharge: 0.4C/10 = 400A
