Jinko Solar Tiger Neo 66HL4M-V 615 Watts Mono-Facial Module

Description

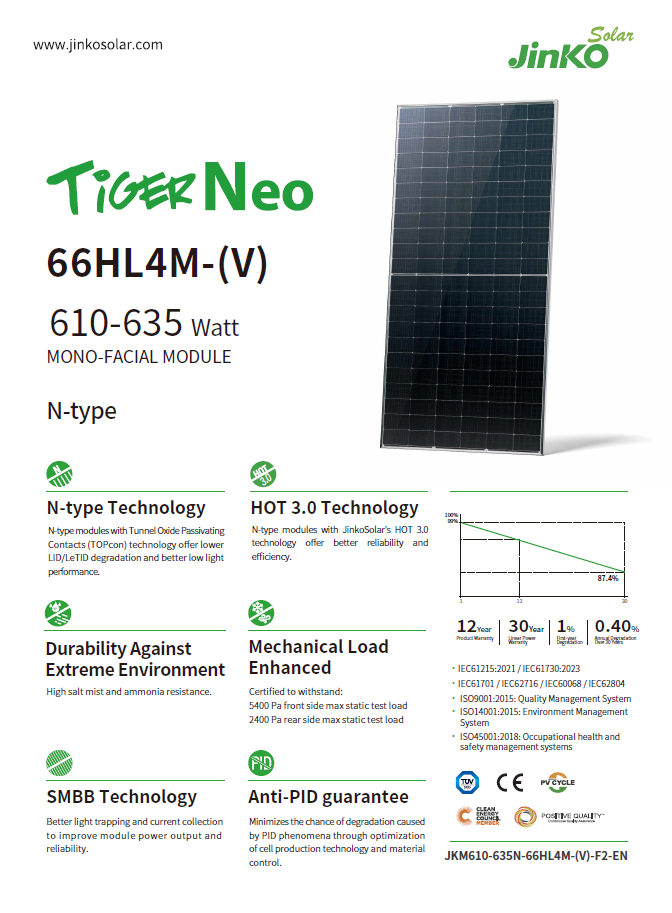

Jinko Solar Tiger Neo 66HL4M-V 615 Watts Mono-Facial Module – Revolutionary N-Type Technology for Enhanced Performance

The Jinko Solar Tiger Neo 66HL4M-V 615 Watts Mono-Facial Module utilizes cutting-edge N-type technology with Tunnel Oxide Passivating Contacts (TOPCon). This innovation minimizes Light-Induced Degradation (LID) and LeTID, ensuring consistent, long-term efficiency. Furthermore, these N-type modules provide outstanding performance in low-light conditions, making them ideal for locations less exposed to direct sunlight.

Superior Efficiency with HOT 3.0 and SMBB Technologies

Equipped with Jinko Solar’s proprietary HOT 3.0 technology, this module guarantees unparalleled reliability and efficiency. With a module efficiency of 22.77%, it is designed to deliver higher power output and reduce energy losses. The incorporation of SMBB (Small Multi-Busbar) Technology further enhances light trapping and current collection, increasing reliability and module efficiency under diverse conditions.

Built to Endure Extreme Environments

The Jinko Solar Tiger Neo module is engineered for durability in even the harshest environments. Its design offers a high resistance to salt mist and ammonia, ensuring it can withstand installations in coastal or agricultural regions without compromising performance. Additionally, the module is certified to endure mechanical loads of up to 5400 Pa on the front side and 2400 Pa on the rear side, highlighting its robustness and reliability.

Technical Specifications for Maximum Precision

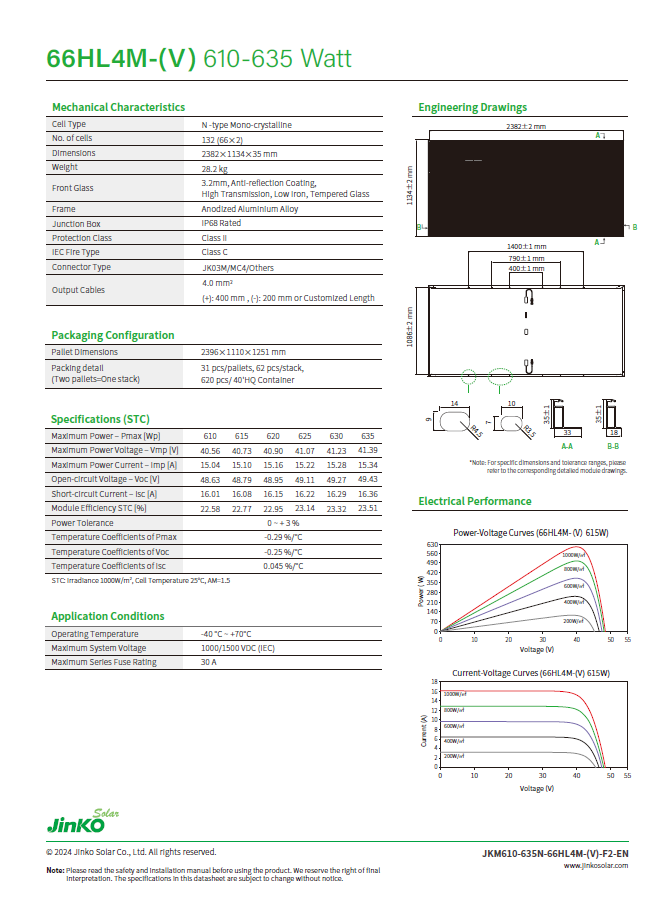

Manufactured with N-type mono-crystalline cells, this module comprises 132 (66×2) cells neatly arranged within dimensions of 2382×1134×35 mm and weighs 28.2 kg. The front glass features an anti-reflection coating, high transmission capabilities, and is made from low-iron tempered glass. Further enhancing its durability, the frame is crafted from anodized aluminum alloy, while the junction box boasts an IP68 rating for superior protection.

Key performance metrics, including a maximum power output of 615 Wp, a power tolerance of 0~3%, and an operational temperature ranging from -40°C to 70°C, ensure reliable operation across various environments. The module supports maximum system voltages of 1000/1500 VDC (IEC) and a maximum series fuse rating of 30A, making it versatile for diverse installations.

Pioneering Anti-PID Guarantee

Designed to minimize potential-induced degradation (PID), the Tiger Neo module integrates optimized cell production techniques and material controls. This ensures long-lasting performance and enhances the lifespan of the module, empowering users to maximize their return on investment.

The Jinko Solar Tiger Neo 66HL4M-V 615 Watts Mono-Facial Module is a revolutionary product that combines unmatched technology with robust durability, making it an ideal solution for residential, commercial, and utility-scale solar installations. Take your solar energy setup to the next level with this efficient and reliable module.
