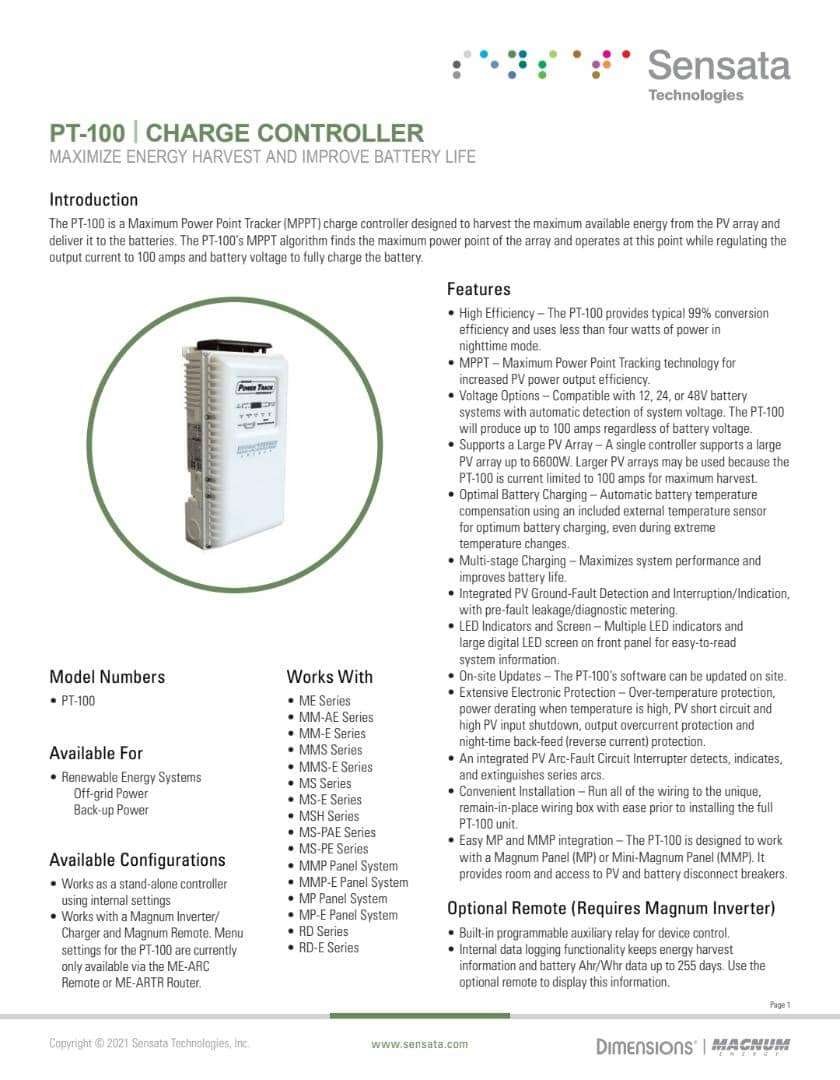

Magnum Energy PT-100 MPPT Charge Controller

SKU PT-100 Categories , Tag

PT-100

MAXIMIZE ENERGY HARVEST AND IMPROVE BATTERY LIFE

The PT-100 is a Maximum Power Point Tracker (MPPT) charge controller designed to harvest the maximum available energy from the PV array and deliver it to the batteries.

The PT-100’s MPPT algorithm finds the maximum power point of the array and operates at this point while regulating the output current and battery voltage to fully charge the battery.

Share this Product!

Description

PT-100

MAXIMIZE ENERGY HARVEST AND IMPROVE BATTERY LIFE

The PT-100 is a Maximum Power Point Tracker (MPPT) charge controller designed to harvest the maximum available energy from the PV array and deliver it to the batteries.

The PT-100’s MPPT algorithm finds the maximum power point of the array and operates at this point while regulating the output current and battery voltage to fully charge the battery.

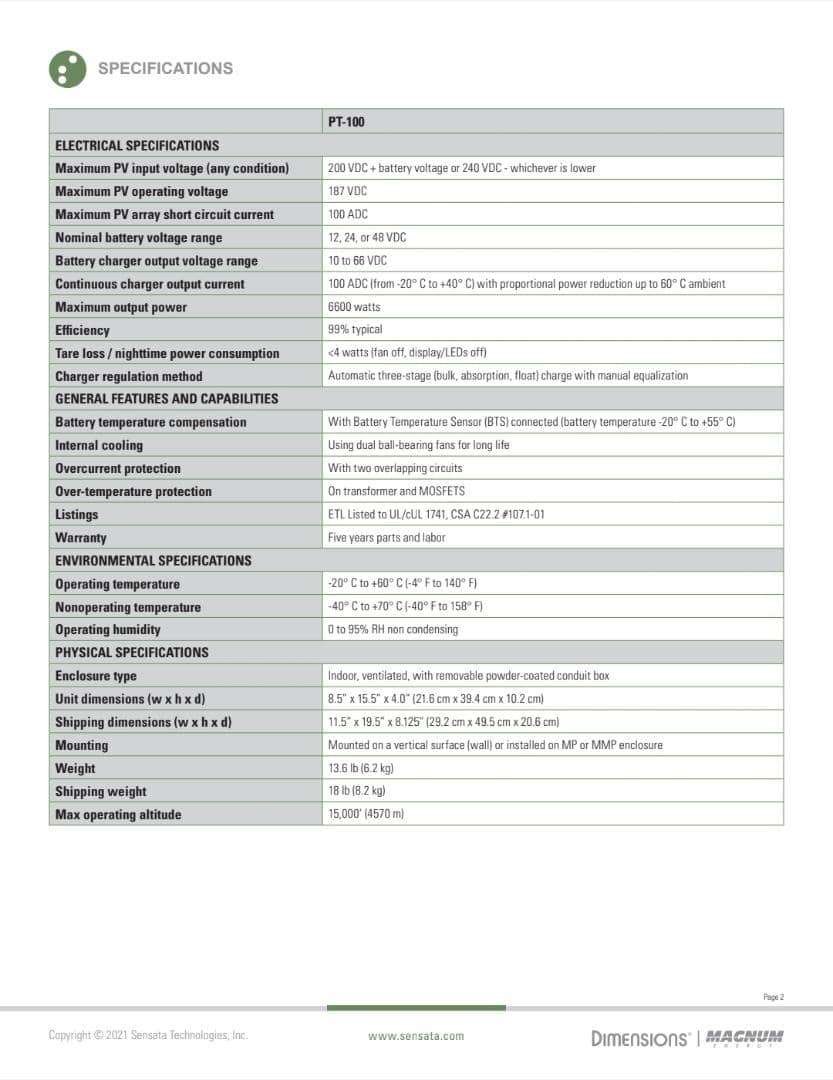

Specifications:

Output Current 100 amps
Battery Voltage 12, 24, or 48 V
MPPT Yes
Power Consumption < 4 watts (fan off, display/LEDs off)
Maximum PV input voltage (any condition) 200 VDC + battery voltage or 240 VDC – whichever is lower
Maximum PV operating voltage 187 VDC
Maximum PV array short circuit current 100 ADC
 Nominal battery voltage range 12, 24, or 48 VDC
Battery charger output voltage range 10 to 66 VDC
Continuous charger output current 100 ADC (from -20°C to +40°C) with proportional power reduction up to 60°C ambient
Maximum output power 6600 watts
Efficiency 99% typical
Charger regulation method Automatic three-stage (bulk, absorption, float) charge with manual equalization
Battery temperature compensation With Battery Temperature Sensor (BTS) connected (battery temperature -20 °C to +55 °C)
Internal cooling Using dual ball-bearing fans for long life
Warranty 5 years
