Magnum 4300W, 48V Pure Sine Wave Inverter/Charger

SKU MS4348PE Categories , Tag

MS4348PE

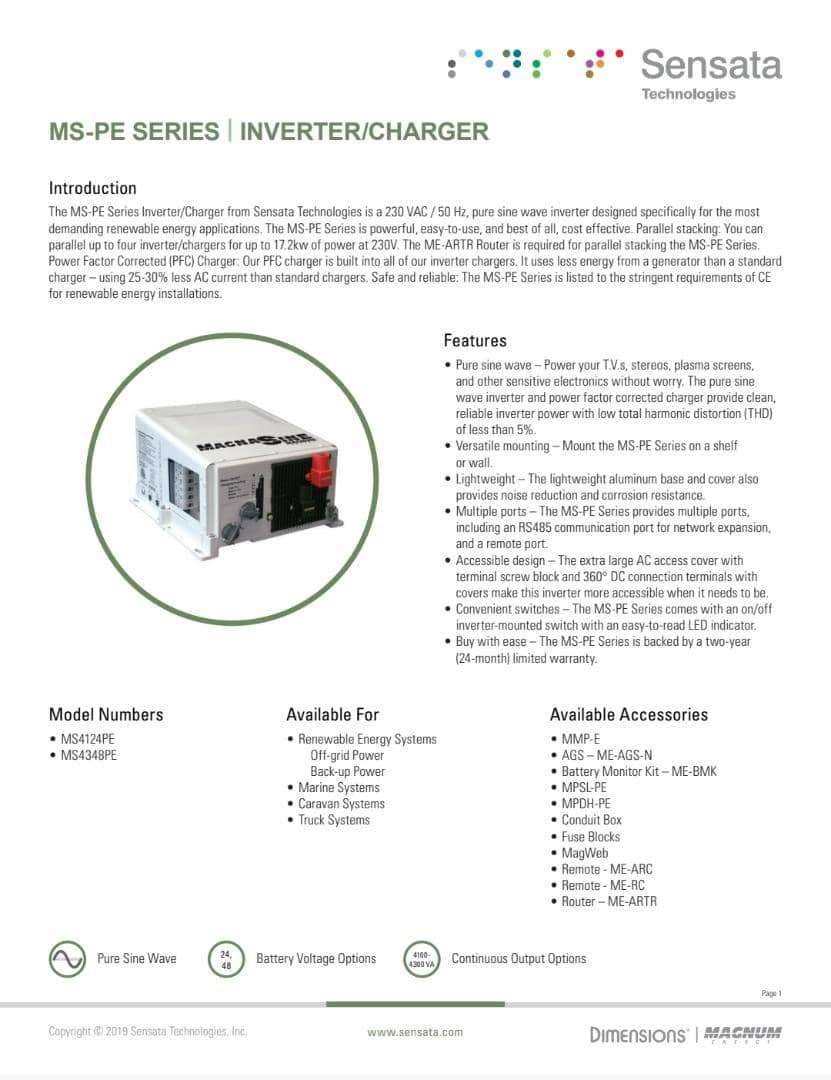

The MS-PE Series Inverter/Charger from Magnum Energy is a 230 VAC / 50 Hz, pure sine wave inverter designed specifically for the most demanding renewable energy applications. The MS-PE Series is powerful, easy-to-use, and best of all, cost effective. Parallel stacking: You can parallel up to four inverter/chargers for up to 17.2kw of power at 230V. The ME-ARTR Router is required for parallel stacking the MS-PE Series. Power Factor Corrected (PFC) Charger: The PFC charger is built into all of the inverter chargers. It uses less energy from a generator than a standard charger – using 25-30% less AC current than standard chargers. Safe and reliable: The MS-PE Series is listed to the stringent requirements of CE for renewable energy installations.

Share this Product!

Description

MS4348PE

The MS-PE Series Inverter/Charger from Magnum Energy is a 230 VAC / 50 Hz, pure sine wave inverter designed specifically for the most demanding renewable energy applications. The MS-PE Series is powerful, easy-to-use, and best of all, cost effective. Parallel stacking: You can parallel up to four inverter/chargers for up to 17.2kw of power at 230V. The ME-ARTR Router is required for parallel stacking the MS-PE Series. Power Factor Corrected (PFC) Charger: The PFC charger is built into all of the inverter chargers. It uses less energy from a generator than a standard charger – using 25-30% less AC current than standard chargers. Safe and reliable: The MS-PE Series is listed to the stringent requirements of CE for renewable energy installations.

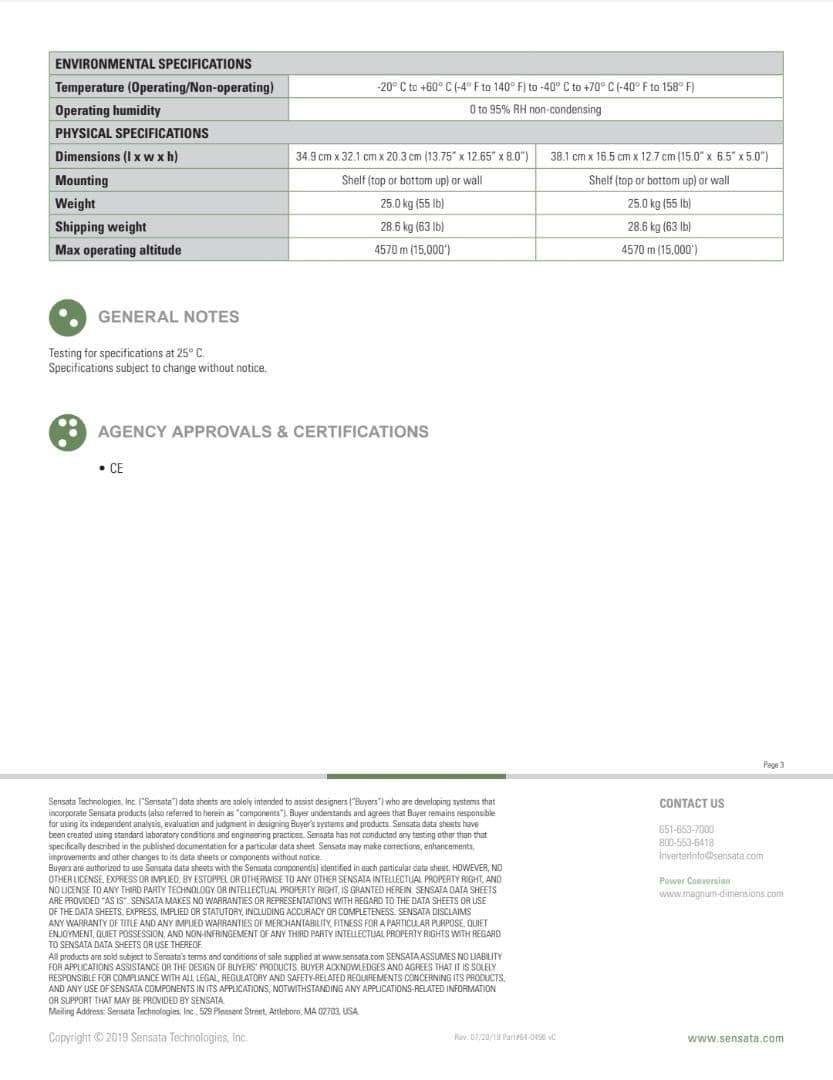

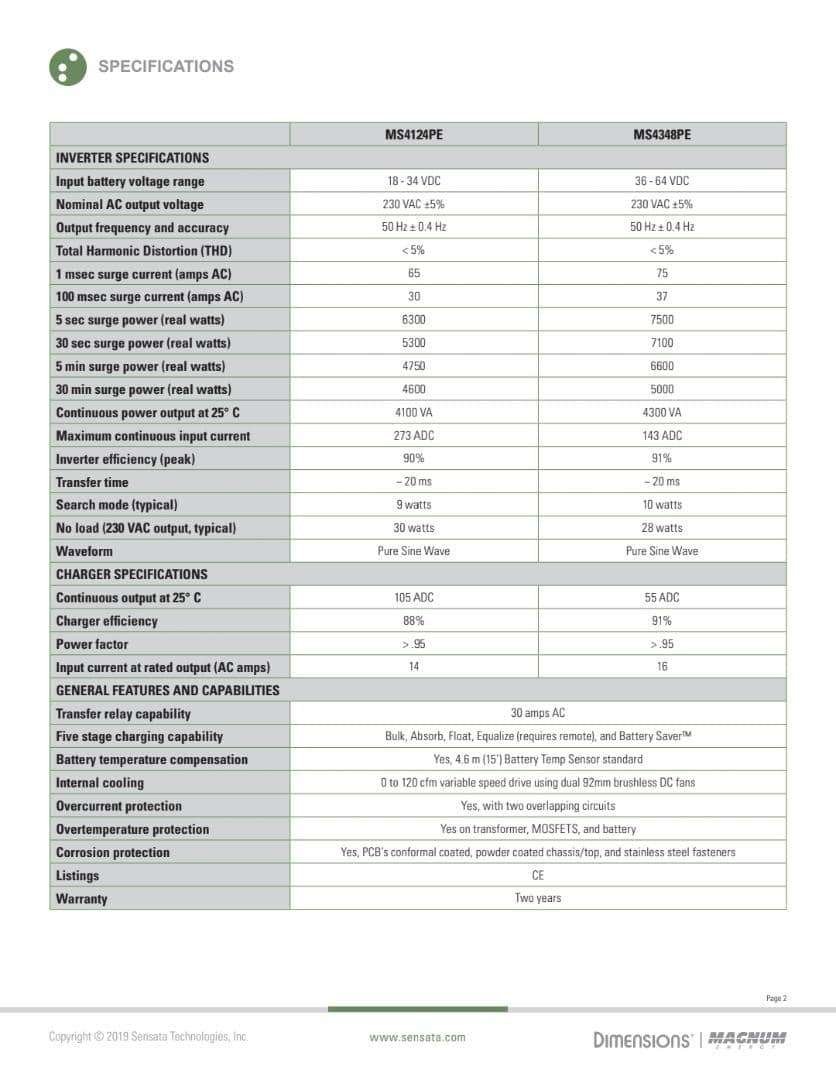

Specifications:

Output Power 4,300W
Peak Watts 7,500W
Warranty Two years
Output Voltage 230 VAC
Output Current 18.7 amps
Output Waveform Pure Sine
Output Frequency 50 Hz
Input Voltage 48
Operating Temp -20° C to +60° C (-4° F to 140° F)
Efficiency 91%
Weight 25.0 kg (55 lb)
Dimensions 38.1 cm x 16.5 cm x 12.7 cm (15.0” x 6.5” x 5.0”)
Listings CE
Phase Single
Topology Low Frequency
Input Battery Voltage Range 36 – 64
